XJ, YJ, TJ, ZJ, WJ and JK. Same basic recirculating-ball box idea, different linkage, and different weak spots once the tires grow.

Models and years

CodeModelModel yearsFactory linkage
XJCherokee1984-2001Inverted-Y
YJWrangler1987-1995Inverted-T
ZJGrand Cherokee1993-1998Inverted-Y
TJWrangler1997-2006Inverted-Y
WJGrand Cherokee1999-2004Its own design (see below)
JKWrangler2007-2018Drag link + tie rod

The MJ Comanche uses the same inverted-Y layout as the XJ. US model years shown.

Inverted-Y vs inverted-T

DriverPassengerBox + pitman armTie rod: driver knuckle to drag linkTie rod (to the drag link)Drag link (to the passenger knuckle)
Inverted-Y (Haltenberger): XJ, TJ, ZJ. The drag link steers the passenger knuckle and the tie rod hangs off it.
DriverPassengerBox + pitman armTie rod: knuckle to knuckleTie rodDrag link (to the tie rod)
Inverted-T: YJ. The tie rod runs knuckle to knuckle and the drag link pushes on the tie rod.
  • Inverted-Y: keeps toe adjustment simple and avoids tie rod roll. The catch is that toe changes as the suspension moves, which shows up more on lifted Jeeps.
  • Inverted-T: the solid knuckle-to-knuckle tie rod holds toe, but it can rotate under steering load. That can show up as a dead spot or bump steer, especially with steep linkage angles.

XJ, MJ and TJ

Modified white Jeep Cherokee XJ with a roof rack and steel bumper

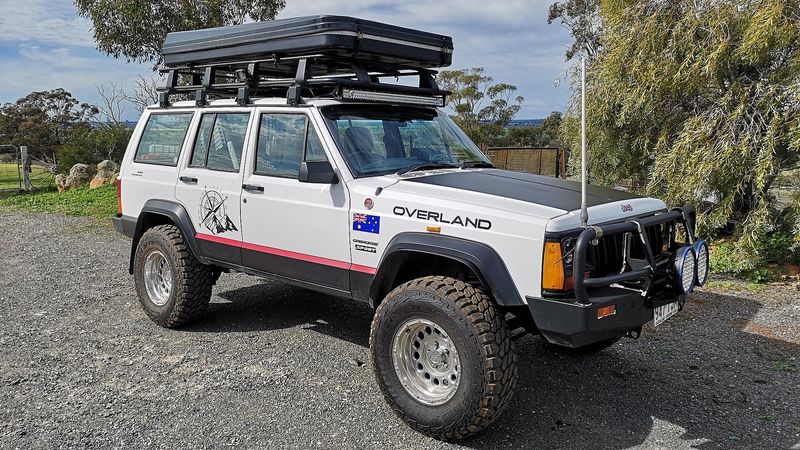

A built XJ Cherokee. XJs and TJs share the inverted-Y steering idea. Photo: Lazlazlaze, CC BY-SA 4.0 (resized), via Wikimedia Commons.

The XJ (and MJ) and TJ steer with the inverted-Y layout, a recirculating-ball box and a steering damper on the linkage. The factory geometry works well at stock height. With bigger tires and harder trail use, owners report the linkage is the part that bends.

YJ

Jeep YJ Wrangler with round fender flares parked in snow

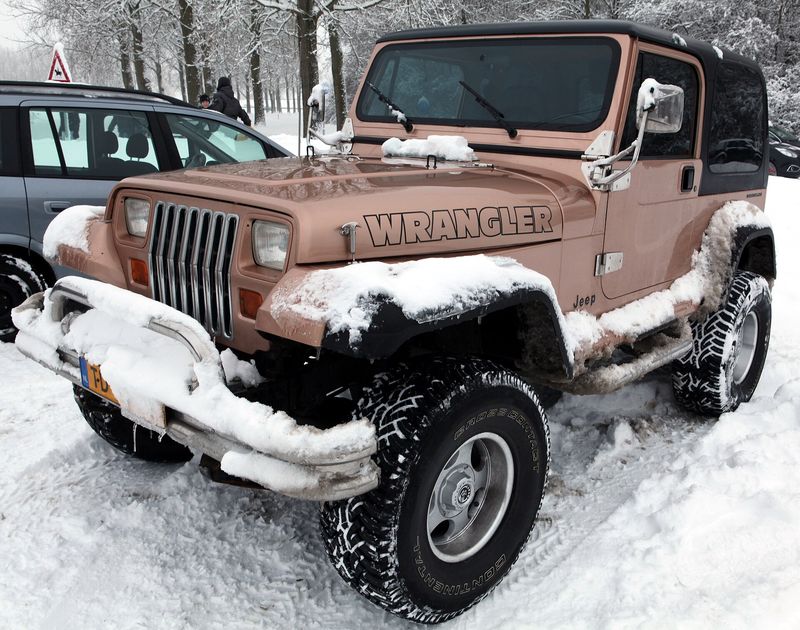

A YJ Wrangler, the Wrangler with the inverted-T tie rod. Photo: Joost J. Bakker from IJmuiden, CC BY 2.0 (resized), via Wikimedia Commons.

The YJ uses the inverted-T layout. Upgrades usually mean a stronger tie rod and drag link in the same layout, or a full crossover conversion on a built axle.

ZJ and WJ

The ZJ Grand Cherokee uses the inverted-Y layout. Its V8 tie rod is a commonly discussed bolt-in upgrade for XJ, MJ and TJ owners who want a stouter rod without changing the geometry. Treat it as a moderate-use upgrade, and confirm the parts and fitment for your exact Jeep with the seller.

The WJ Grand Cherokee that followed has its own steering box and linkage. Don't assume ZJ, XJ or WJ steering parts interchange: owners trying WJ parts on earlier Jeeps report custom work.

JK

The JK uses a straight-ratio recirculating-ball box driving a pitman arm, drag link and tie rod, with a steering damper. On big tires, the JK's box and its mount are the well-known weak spots. Aftermarket sector-shaft braces add a bearing support under the pitman arm, and stronger boxes and ram assist are other common answers.

Common upgrade paths

  1. Fix wear first: worn tie rod ends, a loose box or tired bushings make any upgrade feel bad.
  2. Stronger linkage, same geometry: heavier tie rods and drag links in the factory layout.
  3. Crossover or high-steer: moves the linkage above the springs and away from rocks, but it needs matching knuckle arms and often a different pitman arm. Expect some bump steer to manage.
  4. Box support: a brace or a stronger box, especially on the JK.
  5. Ram assist: for big tires off-road. See assist and hydraulics.

Last reviewed 2026-10-19. General information only: verify with your service information and parts maker.
